Beschreibung
SPECIFICATIONS
Brand Name: VaneAims
Certification: NONE,NONE
Current: 3A
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Feature 1: Button switch with led
Feature 2: led button switch
Features: Waterproof push button switch
High-concerned chemical: None
Is Smart Device: No
Item Type: SWITCHES
Luminous Color: Red Blue Green Yellow White
Material: Alloy
Maximum Current: 5A
Origin: Mainland China
Switch Type: Push Button Switch
Voltage: 5V 12V 24V 220V
IMPORTANT NOTICE
This listing is for the switch only, the plug-in connector/base is NOT included.
Please purchase the connector separately if needed.
Product Parameter

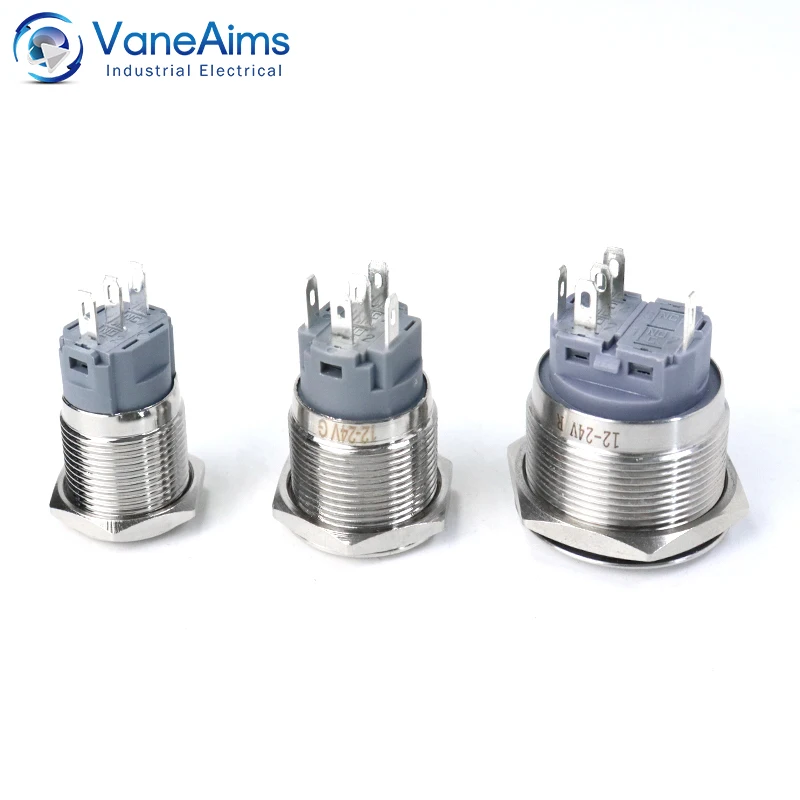

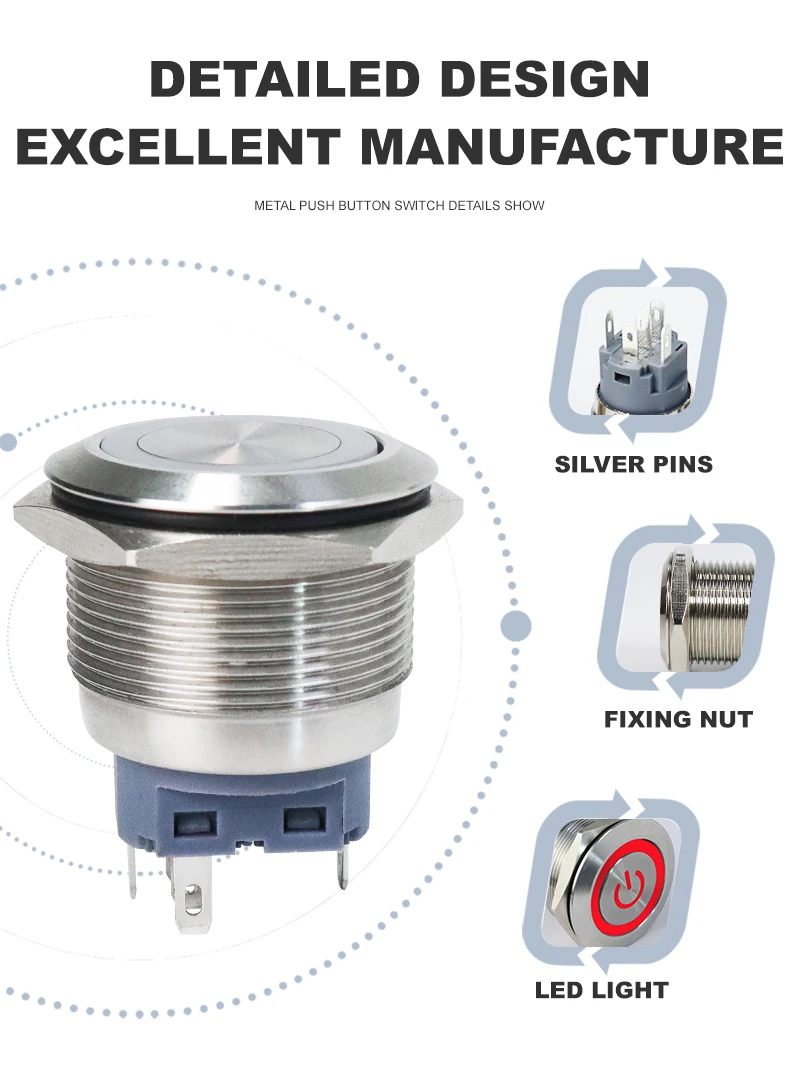

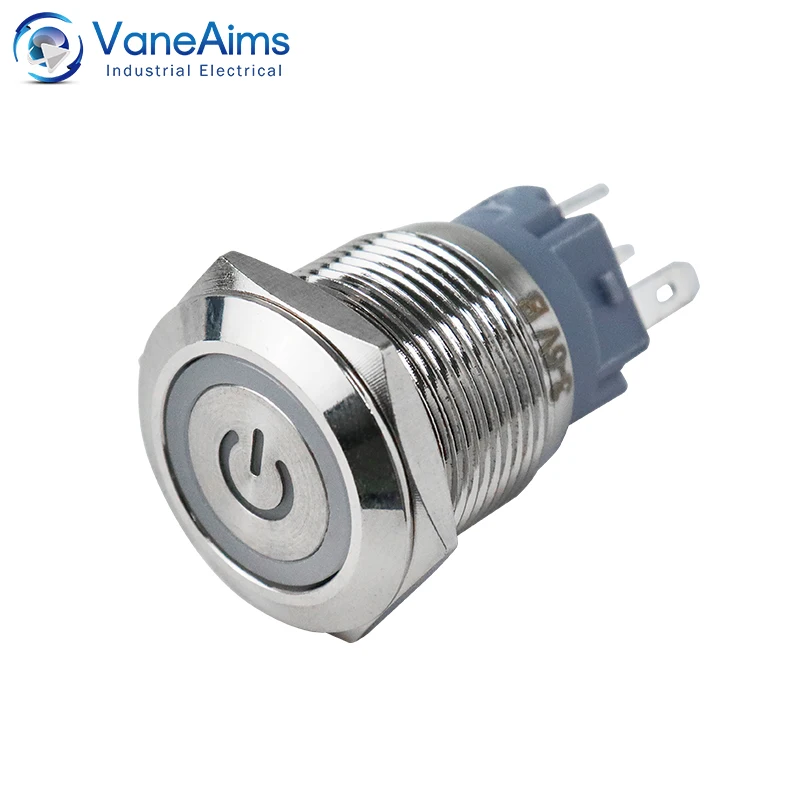

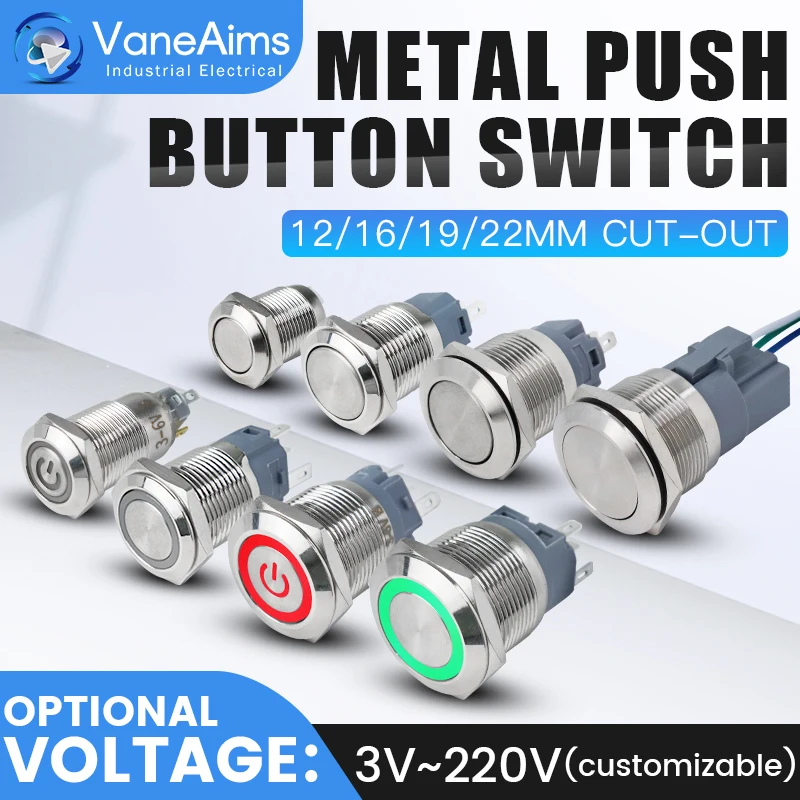

Product name: Metal push button switch

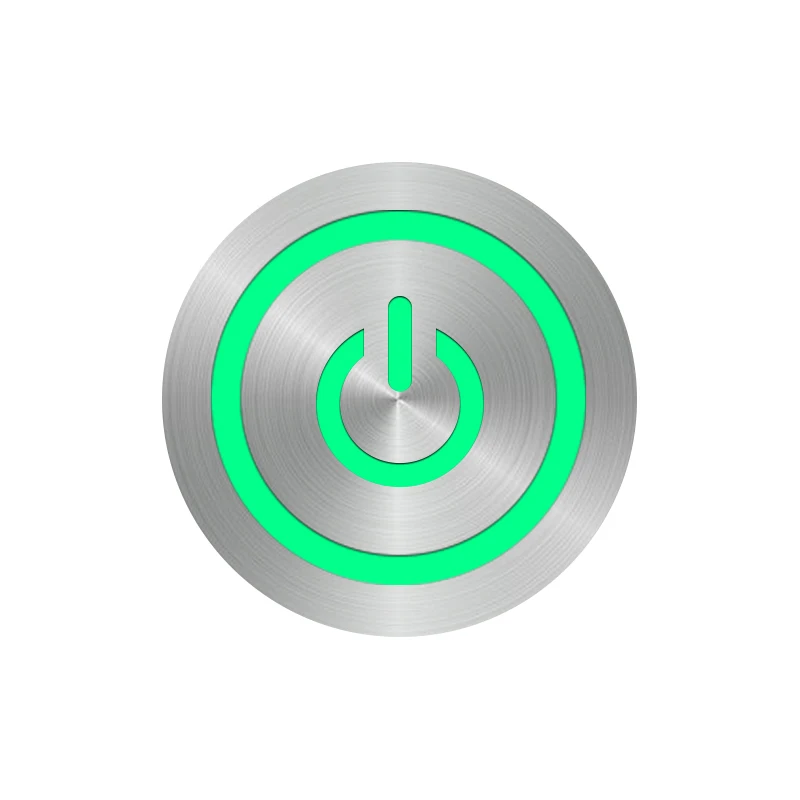

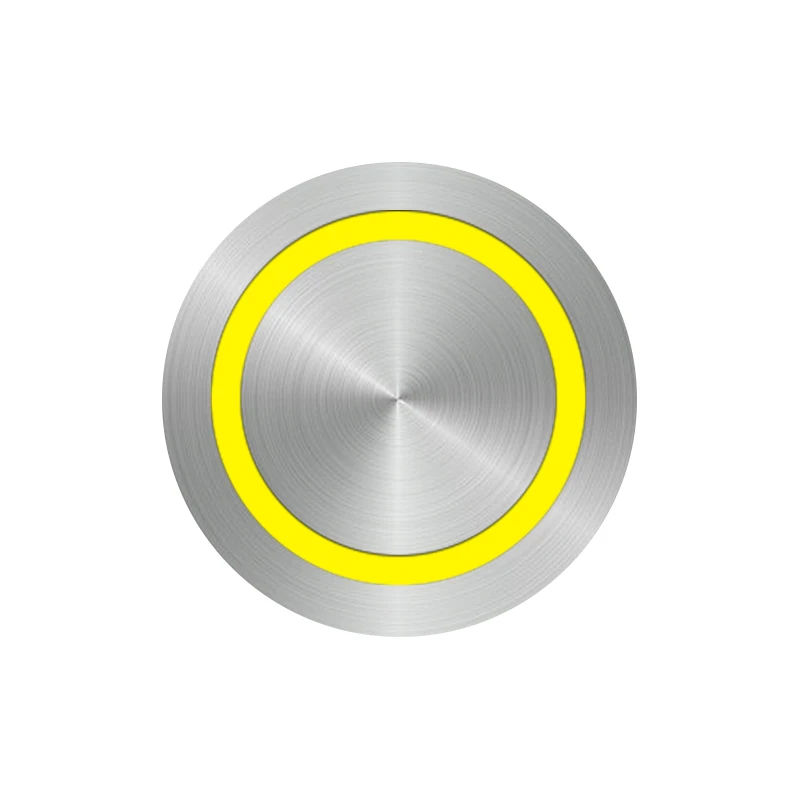

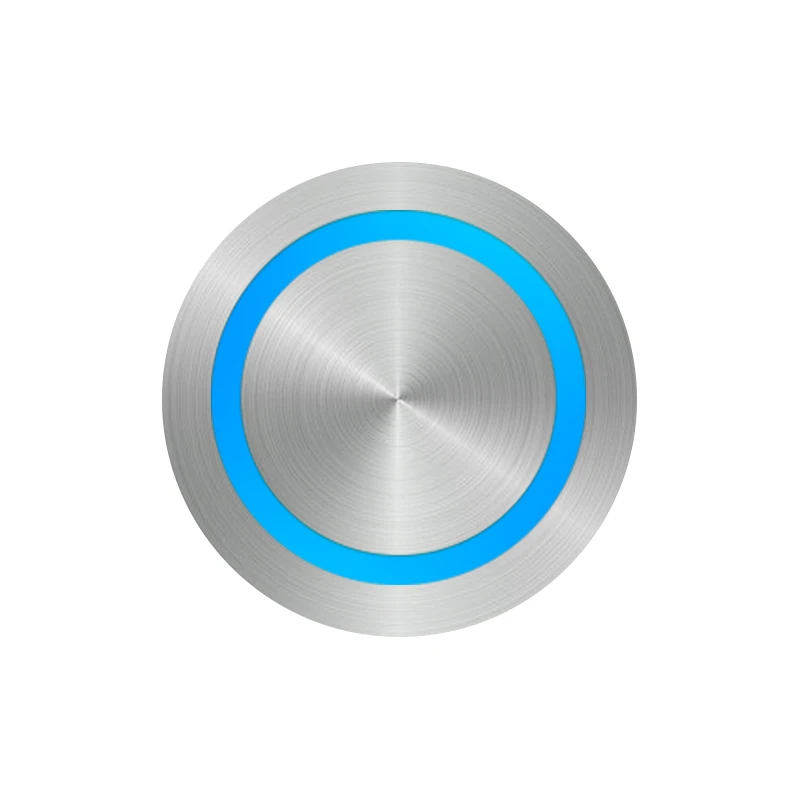

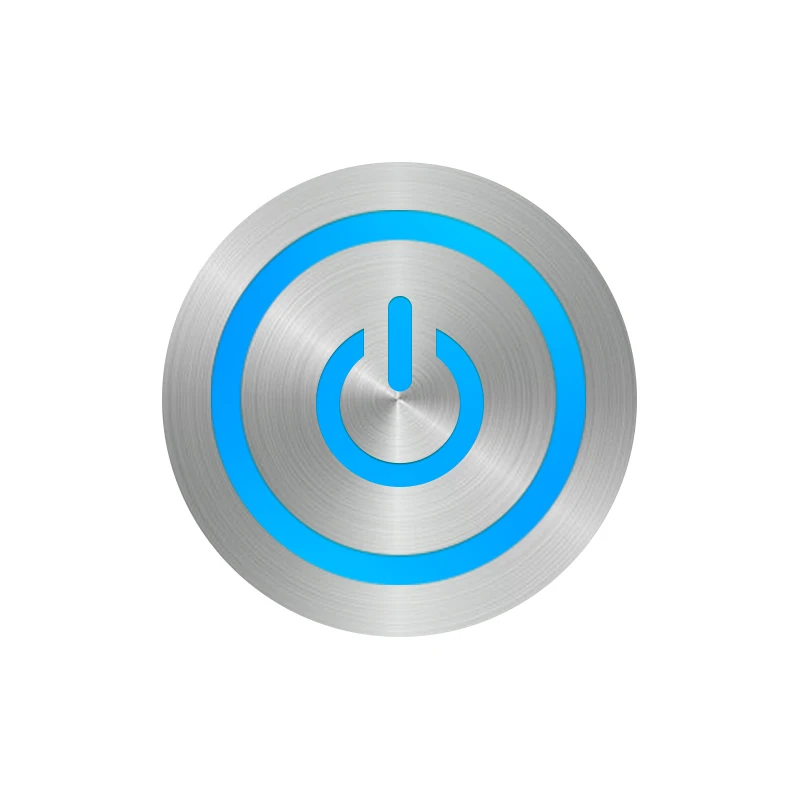

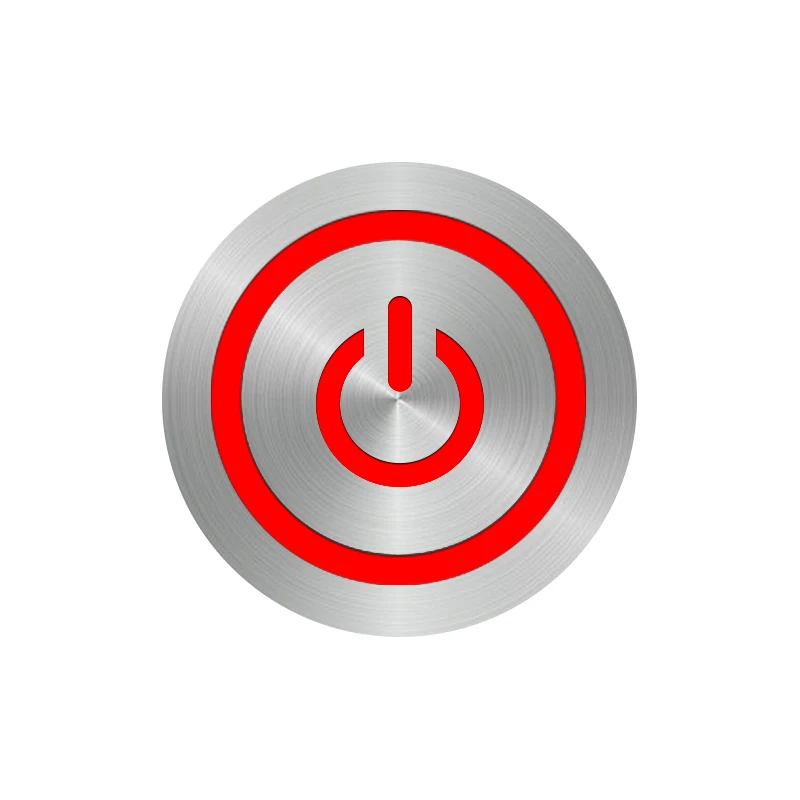

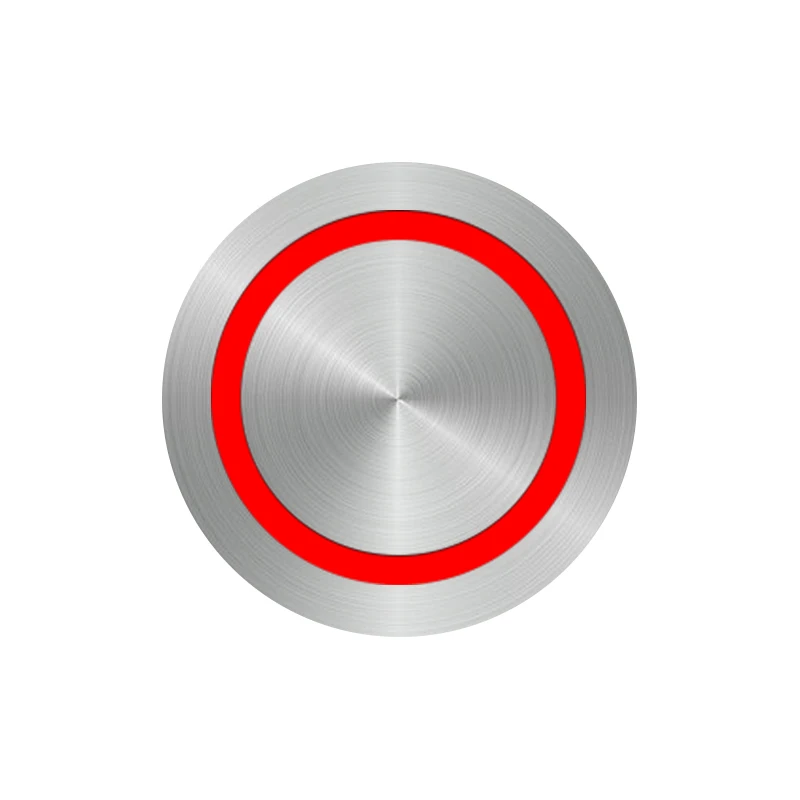

LED Colors: Red Blue Green Yellow White

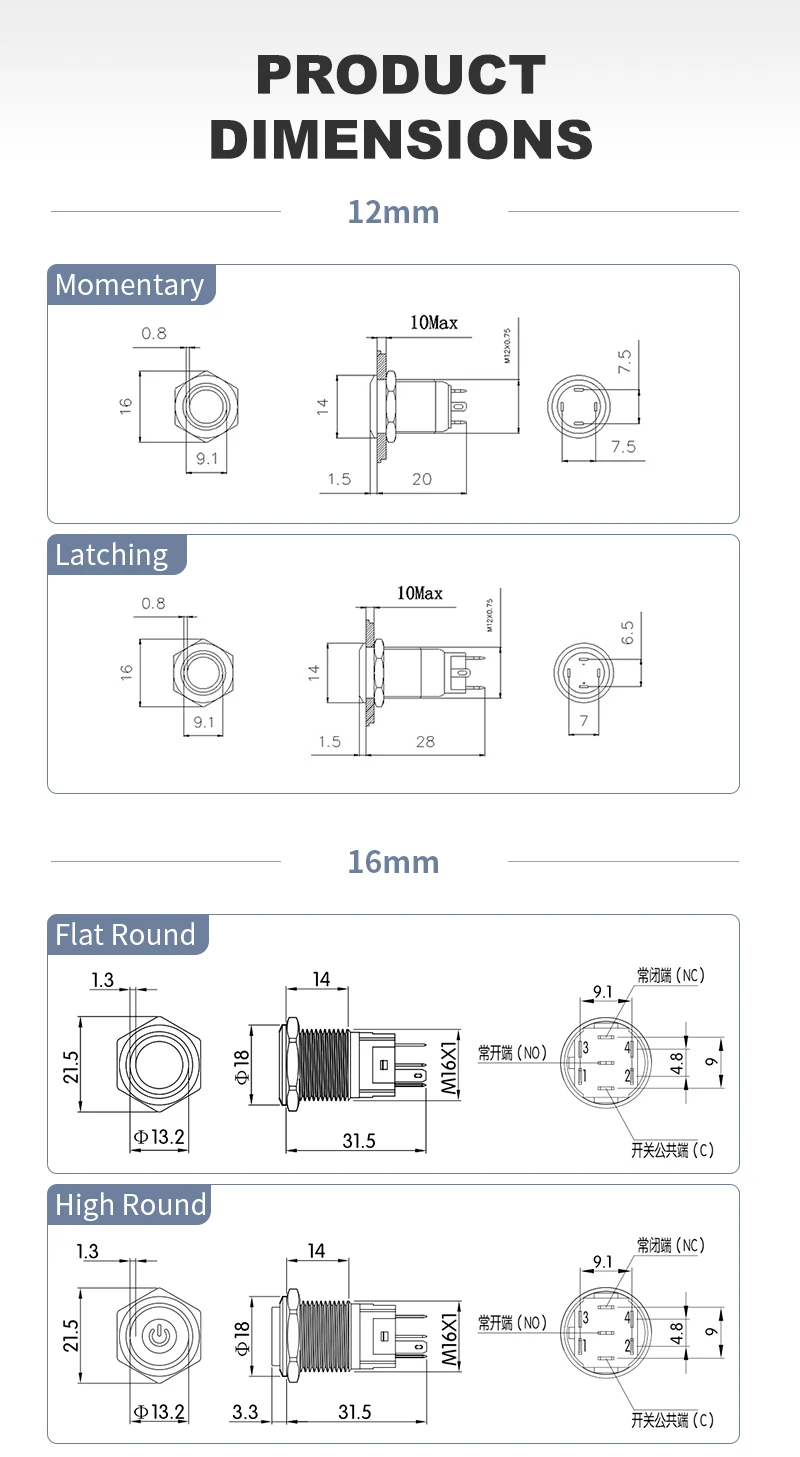

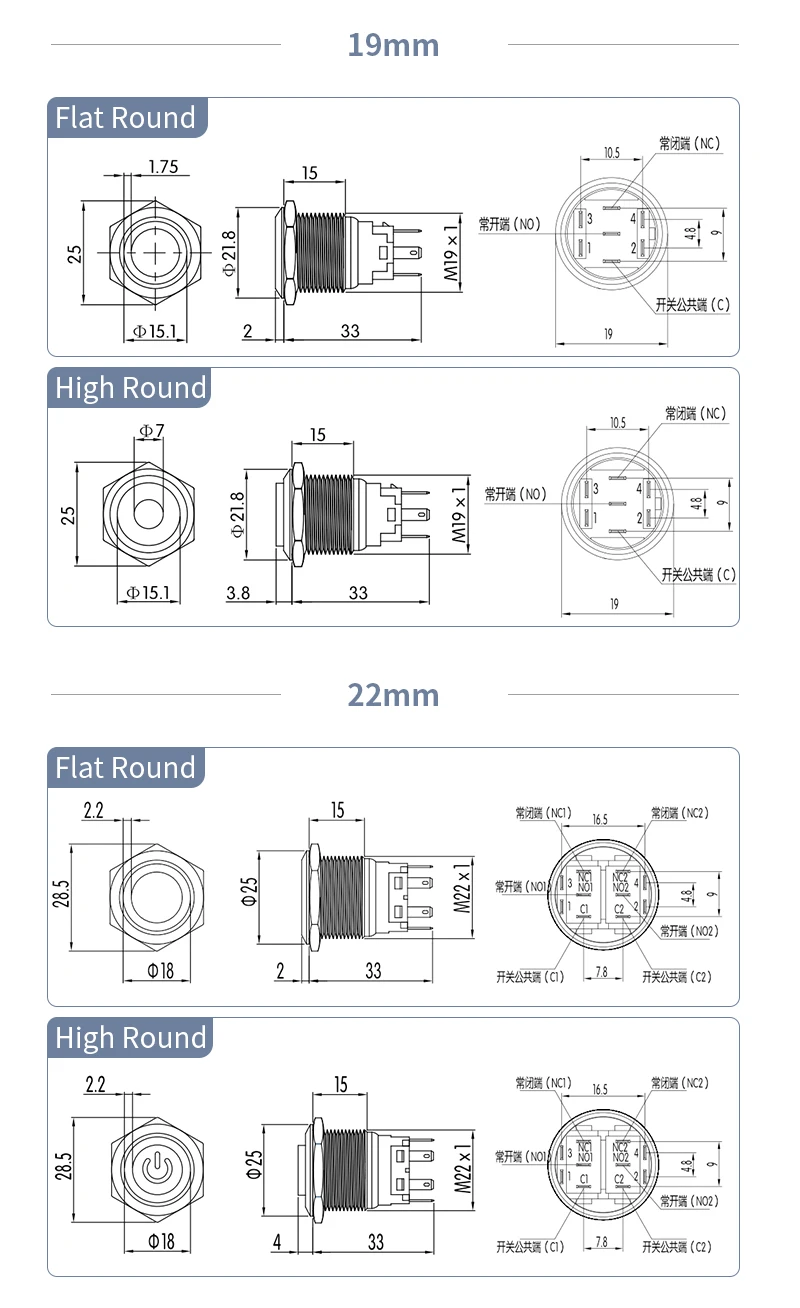

Opening diameter: 12/16/19/22mm [12mm default 1NO, 16-22mm default 1NO1NC]

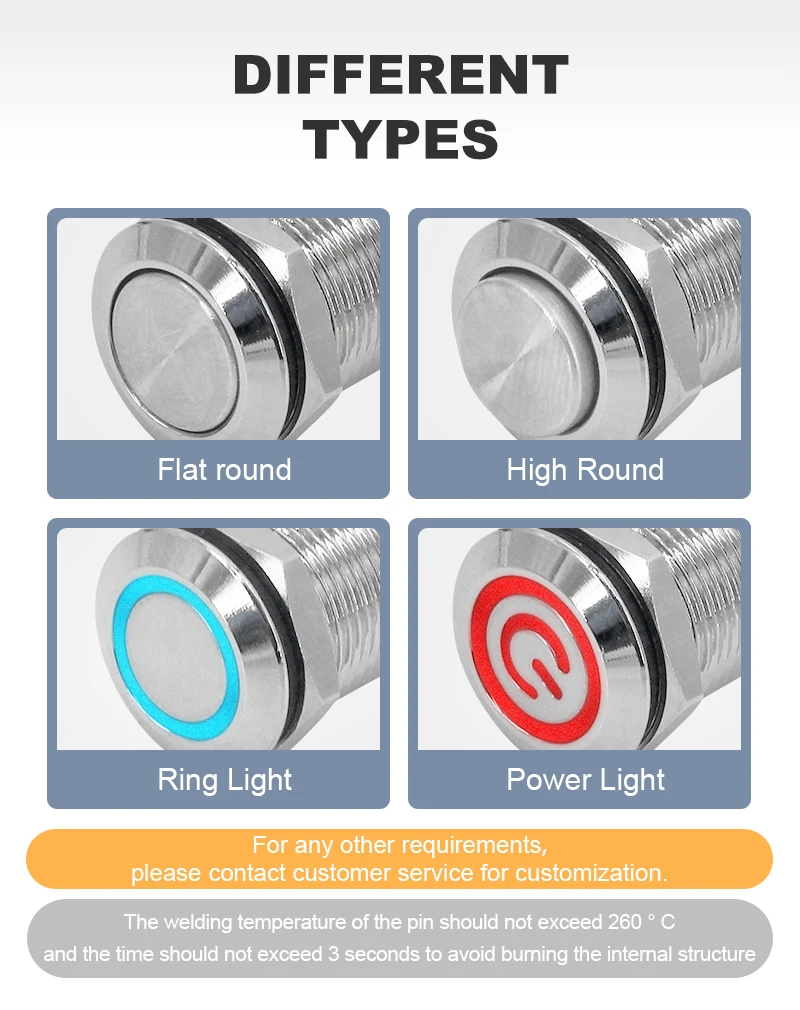

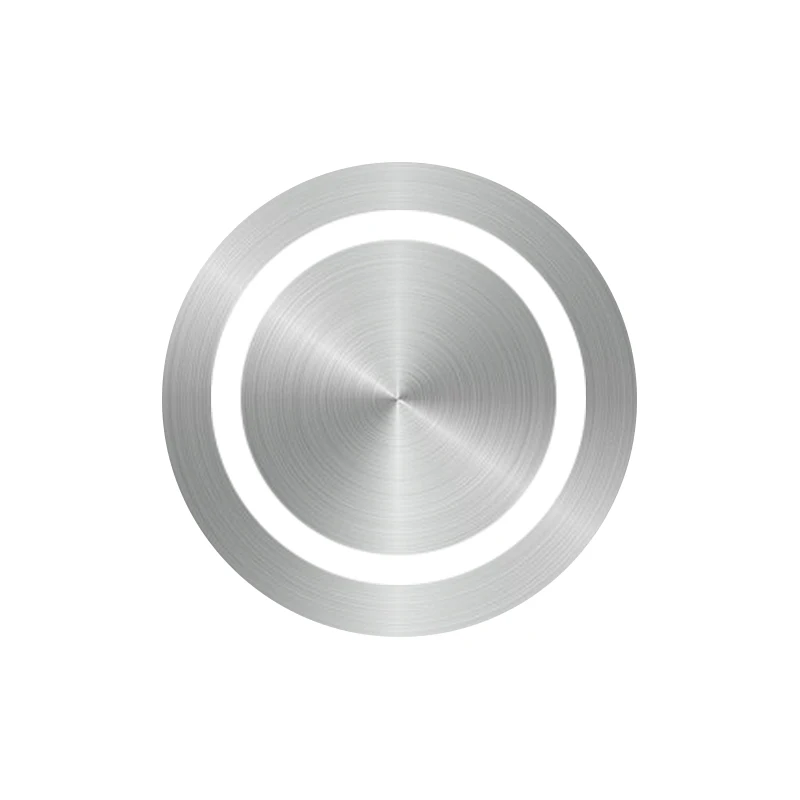

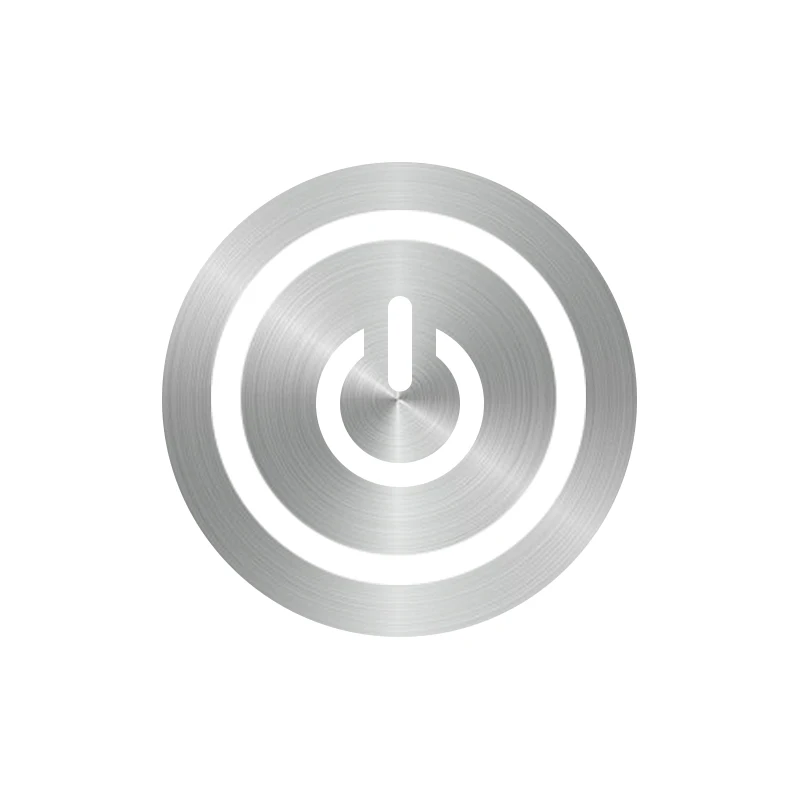

Head Type: Flat Head
Shell color: Silver Shell
Voltage:5V 12V 24V 220V

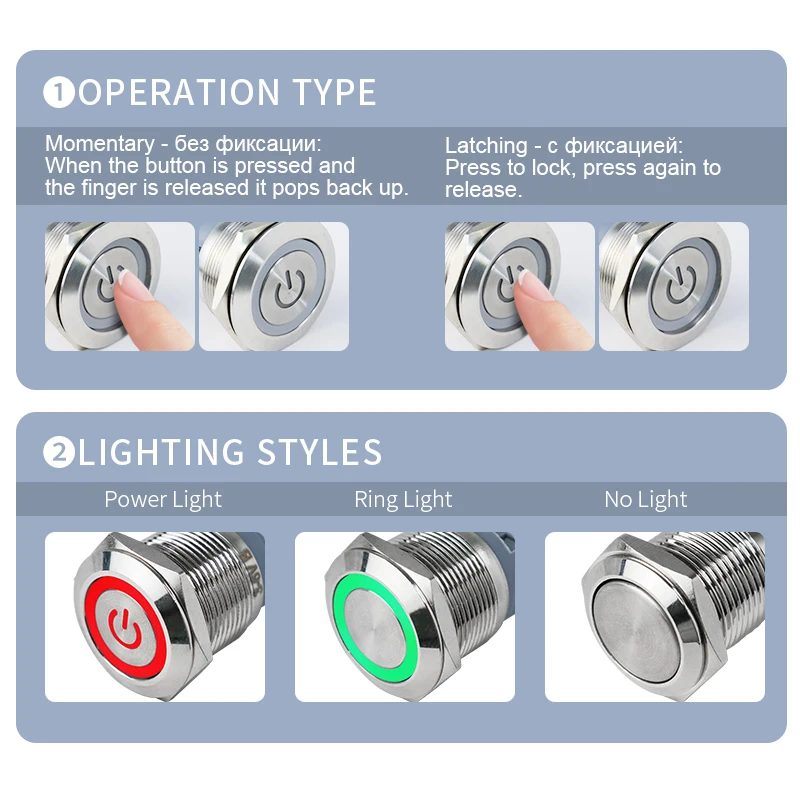

Operation type: Momentary self-reset/ Latching self-locking
Momentary self-reset: Press the button to turn on the power(light on), remove the hand, the power will turn off automatically(light off)
Latching self-locking: Press the button to fix the lock(light on), and then press the button again to unlock it, the power will turn off(light off).
Product sold here does NOT include the connector base/wiring harness. Contact us to buy the matching connector base if required.
Click here to buy adapted wires for 12mm>>
